LED Lighting
Urvi is proud to announce that the company is launching its high quality Lighting products with standard LEDs such as Nichia, Seoul , Edison, etc. After an exhaustive research in the field the company came out with very limited but versatile range of LED products. Our products can be designed in such a way that the same fixtures with little innovations and ideas can fulfill most of the requirements of commercial establishments.
The company successfully installed and field tested its products for more than a year in the areas such as
Hotels, Restaurants, Sweet Marts, Ice cream Parlors, Pastry shops, Small Food Joints, etc.
Jewelers Shops, Shoe stores, Garment stores, Cloth and Saree Stores, etc.
Hospitals, Small Offices, Computer Centers, Corporate Offices, etc.
....................................................................................................................................................................................................
Home Lighting
Linear , Rectangular and Square Range :
| Model | Size (Inbuild Driver) |
Size (External Driver) |
Power (Watt) | Lumens Output |
|---|---|---|---|---|
| UL3WE/N/S | 150x45x22 | 3W | 330/360/300 | |
| UL4WE/N/S | 200x45x22 | 150x45x22 | 4W | 440/480/400 |
| UL6WE/N/S | 210x45x22 | 6W | 660/720/600 | |
| UL8WE/N/S | 400x45x22 | 320x45x22 | 8W | 880/960/800 |
| US9WE/N/S | 135x135x22 | 9W | 990/1080/900 | |
| UL12WE/N/S | 550x45x22 | 500x45x22 | 12W | 1320/1440/1200 |
| UL16WE/N/S | 700x45x22 | 16W | 1760/1920/1600 | |
| US16WE/N/S | 180x180x22 | 16W | 1760/1920/1600 | |
| UL24WE/N/S | 320x135x22 | 24W | 2640/2880/2400 |
U-Urvi, L-Linear, xx- No. of LEDs, W- White, E/N/S-Edison/Nichia/Seoul,
S- Square, R- Round
Street Light
| Mode | Power (Watt) | Lumens Output |
|---|---|---|
| UST30 | 30W | 3000/3600 |
| UST40 | 40W | 4000/4800 |
| UST60 | 60W | 6000/7200 |
Industrial Lighting
| Model | Size (External Driver) | Power (Watt) | Lumens Output |
|---|---|---|---|
| US36WE/N/S | 270x270x22 | 36W | 3960/4320/3600 |
| US64WE/N/S | 360x360x22 | 64W | 7040/7680/6400 |
| US144WE/N/S | 540x540x22 | 144W | 15840/17280/14400 |
| US256WE/N/S | 750x750x22 | 256W | 28160/30720/25600 |

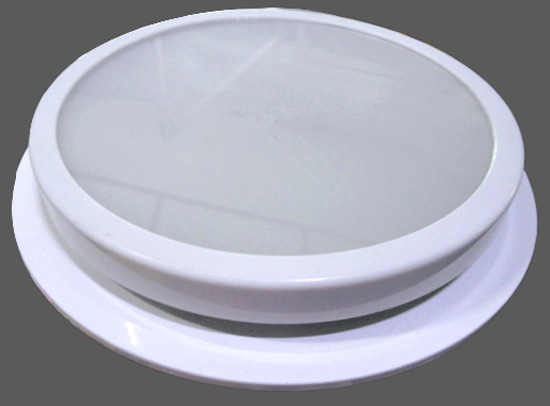

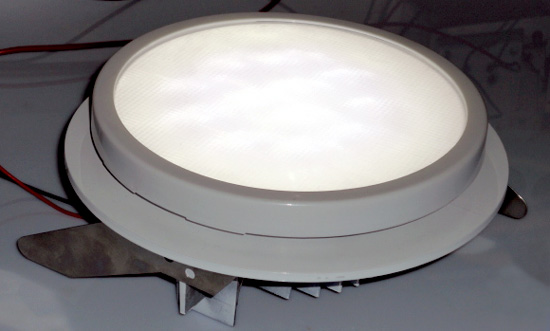

Round Down Lighters :
| Model | Size | Power (Watt) | Lumens Output | Diffuser Efficiency | ||
|---|---|---|---|---|---|---|
| FOD | LOD | HOLE | ||||
| UR9WE/N/ | 170 | 135 | 140 | 9W | 990/1080 | 98% |
| UR12WE/N/ | 170 | 135 | 140 | 12W | 1320/1440 | 98% |
Special Fixtures for Showcases and Display Counters
(With Lenses) :
| Model | Size (Inbuilt Driver) |
Size (External Driver) |
Lens | Power (Watt) |
|---|---|---|---|---|
| UL08WL60E/S | 400x45x22 | 320x45x22 | 60º | 8W |
| UL12WL25E/S | 550x45x22 | 500x45x22 | 25º | 12W |
| UL16WL15E/S | 700x45x22 | 15º | 16W |
Other than the above regular fixtures we have developed some dedicated fixtures using our versatile aluminum extrusion to cater the requirements of commercial establishments.

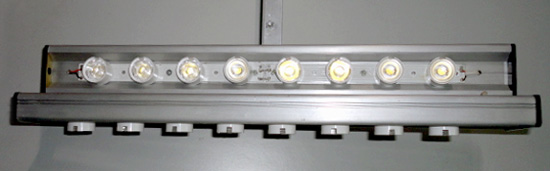

The Model shown is used to light the display counter and the Display cabinet of a Jewelers shop. The two 8 Watt fixtures with 25º lens are assembled making 90º to each other. The lower focuses on the counter and the upper focuses on the cabinet.

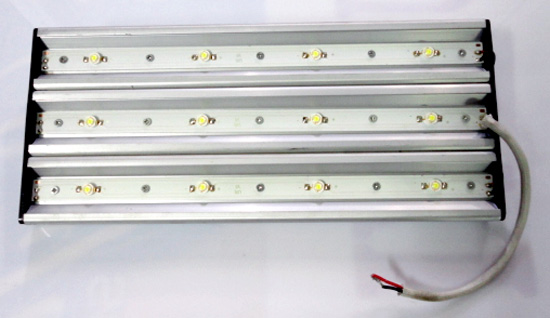

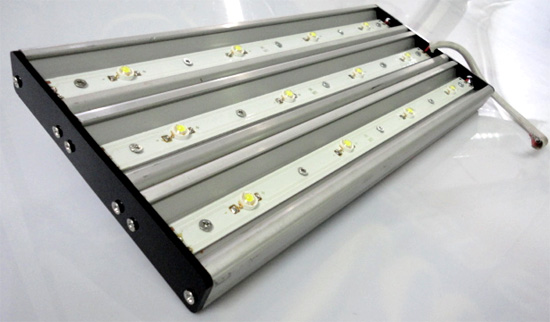

The Fixtures can be arranged in parallel to get any power and any size as per the customer requirement. The below shown photograph is a 12 W fixture (3x4W).

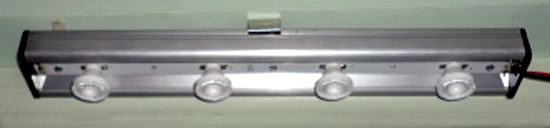

Fixture with 60º Lens for task lighting such as photo frame, artifacts, etc.

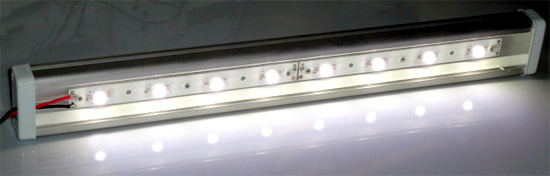

Urvi linear light with 8 LEDS (UL08WE). The model shown here is without diffuser film.

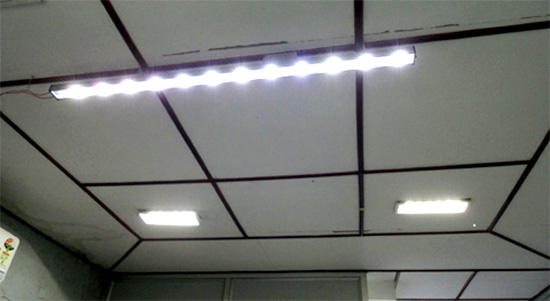

The office cabin lit by using 36 W LED lights. Replacing 1 TL of 40 Watt and 4 CFLs of 11 W each. The lux level is more than the previous Lights with very good appearance.
